Roll Forming and Material Flow Challenges: Identifying and Correcting Material Overfeeding

Material overfeeding occurs when excess material gathers between forming passes. This condition typically appears early in the forming progression while the material remains relatively flat and susceptible to instability.

One of the most common causes is insufficient roll step-up. As roll diameters increase from pass to pass, each station pulls slightly more material than the previous one. When this progression is inadequate, material can accumulate between passes.

Overfeeding may also result from excessive pressure in one station relative to the next. If an upstream pass pushes material faster than a downstream pass can accommodate, the excess material has nowhere to go and begins to gather between stations.

Strip width can also contribute to overfeeding. Material that is too wide may ride on flange rolls, increasing the amount of material being fed through the pass and creating instability throughout the forming process.

Proper pass design, pressure settings, and strip width selection all play important roles in eliminating overfeeding issues.

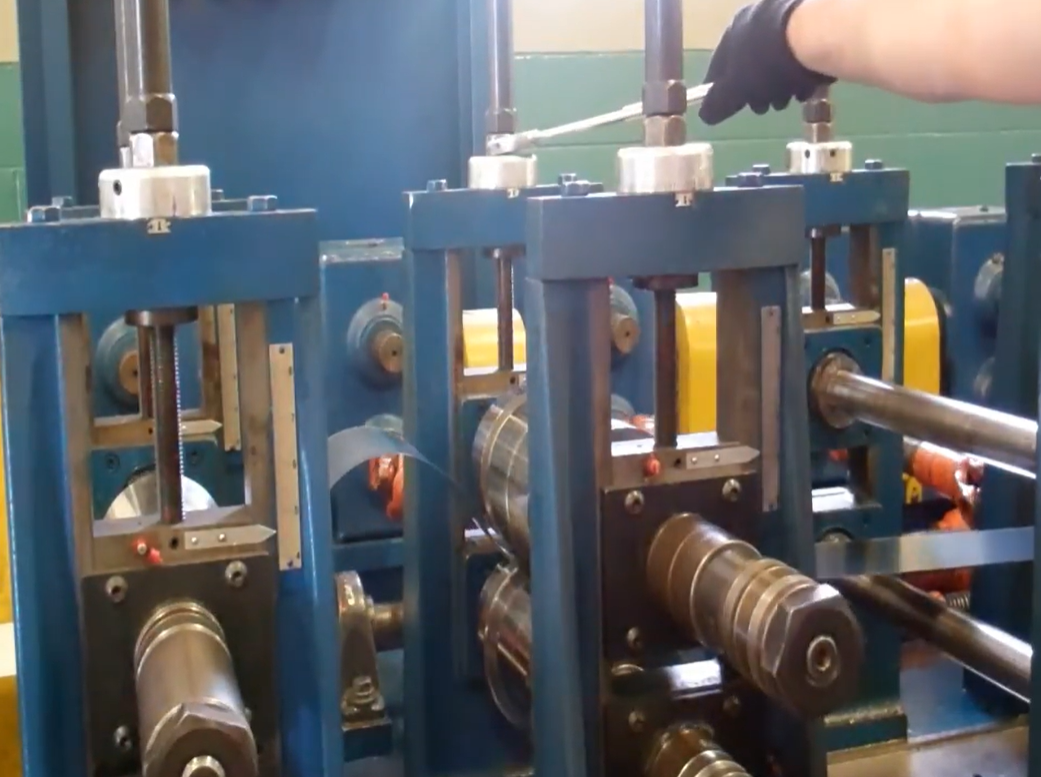

Watch our video below for a full demonstration:
