Reducing Setup Time with Single Point Adjustment: Roll-Kraft Quick Tips Article Series

Welcome back to our Roll-Kraft Quick Tips article series. Drawing from Roll-Kraft's Tube and Pipe Technical Tips video series, these articles bring together practical advice, proven setup techniques, and maintenance best practices that can help improve mill performance and product consistency.

In our next article, we’ll be focusing on Reducing Setup Time with Single Point Adjustment.

Single point adjustment systems simplify mill setup by allowing operators to adjust both the inboard and outboard stands simultaneously through a single adjustment mechanism.

Traditional setups often require separate adjustments on each side of the stand, increasing setup time and introducing opportunities for misalignment. With a single point adjustment system, both jack screws move together, helping maintain top shaft parallelism while significantly reducing setup time.

Another major advantage is documentation. Scale indicators can be recorded during successful production runs and reused during future setups, creating a more repeatable process and reducing dependence on operator memory.

In addition to improving efficiency, spring-loaded breakdown heads can further improve consistency by maintaining more uniform pressure across varying material conditions. These systems can help extend tooling life while improving setup repeatability.

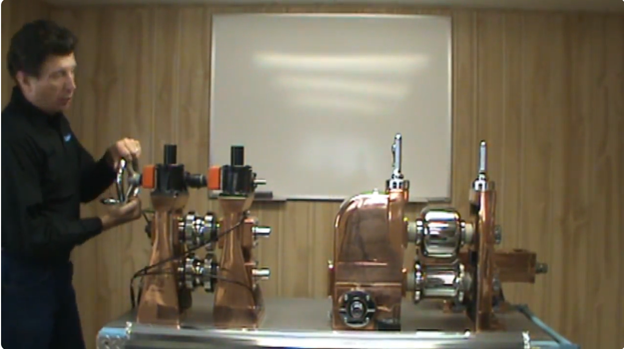

Watch our video below for a full demonstration:
