Weld Box Setup and Weld Preparation: Setting Up a Weld Box for Consistent Weld Quality

Proper weld box setup begins long before the material reaches the welding section. The integrity of the weld box itself must first be verified by inspecting the chuck assembly, clevises, weld roll pins, bearings, lubrication points, and all supporting components.

Weld rolls should be examined for wear, proper bearing installation, and correct orientation. Installing weld rolls incorrectly can restrict bead clearance and negatively impact weld quality. Bearing assemblies should be inspected to ensure proper spacing and freedom of movement without binding.

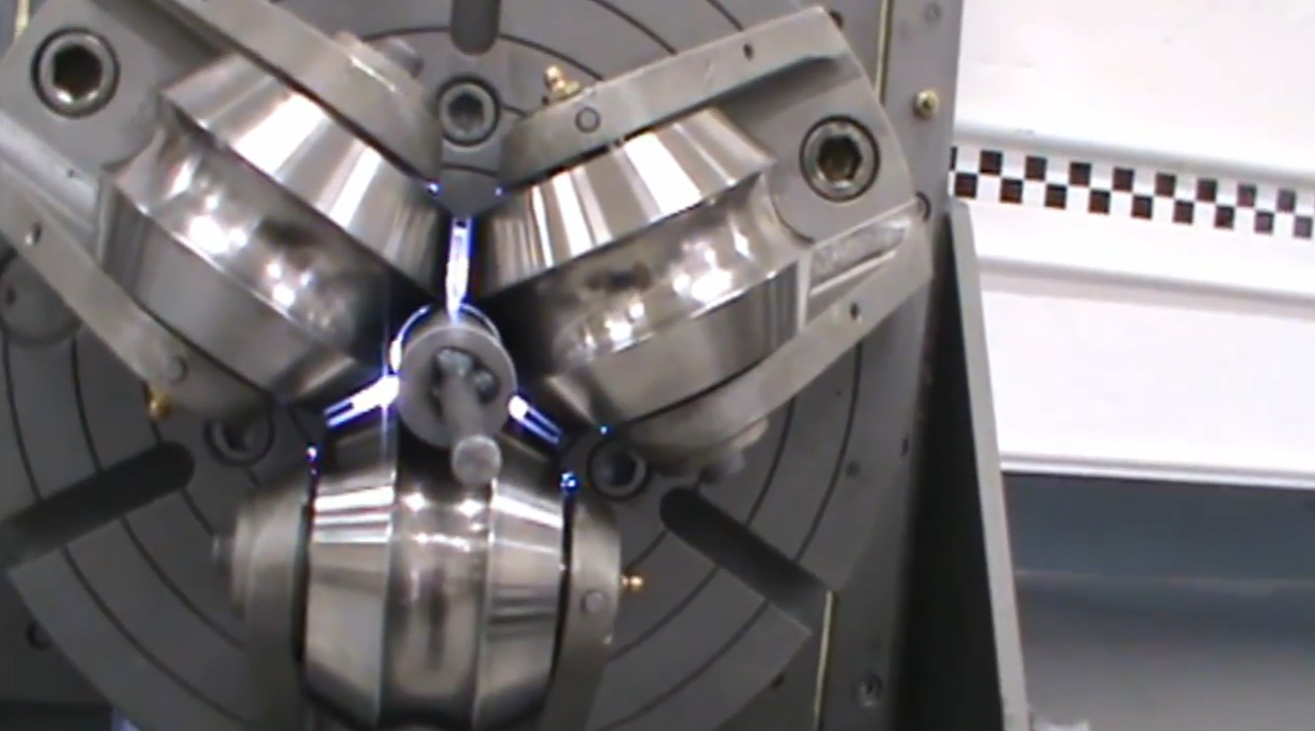

Once the mechanical condition of the weld box has been verified, a setup plug matching the intended welded tube size can be used to establish proper roll positioning. Unlike setting the weld box solely by gap measurements, the plug method removes backlash from the system and more accurately replicates actual operating conditions.

As adjustments are made, the objective is to eliminate any visible light between the setup plug and the weld roll radii. When properly adjusted, the weld box is positioned to produce more consistent welds while minimizing setup time during production startup.

Watch our video below for a full demonstration:
